Gyproc Fire Resistant Gypsum Board 12.5mm
October 15, 2025Aluminium lay-in tile
October 15, 2025

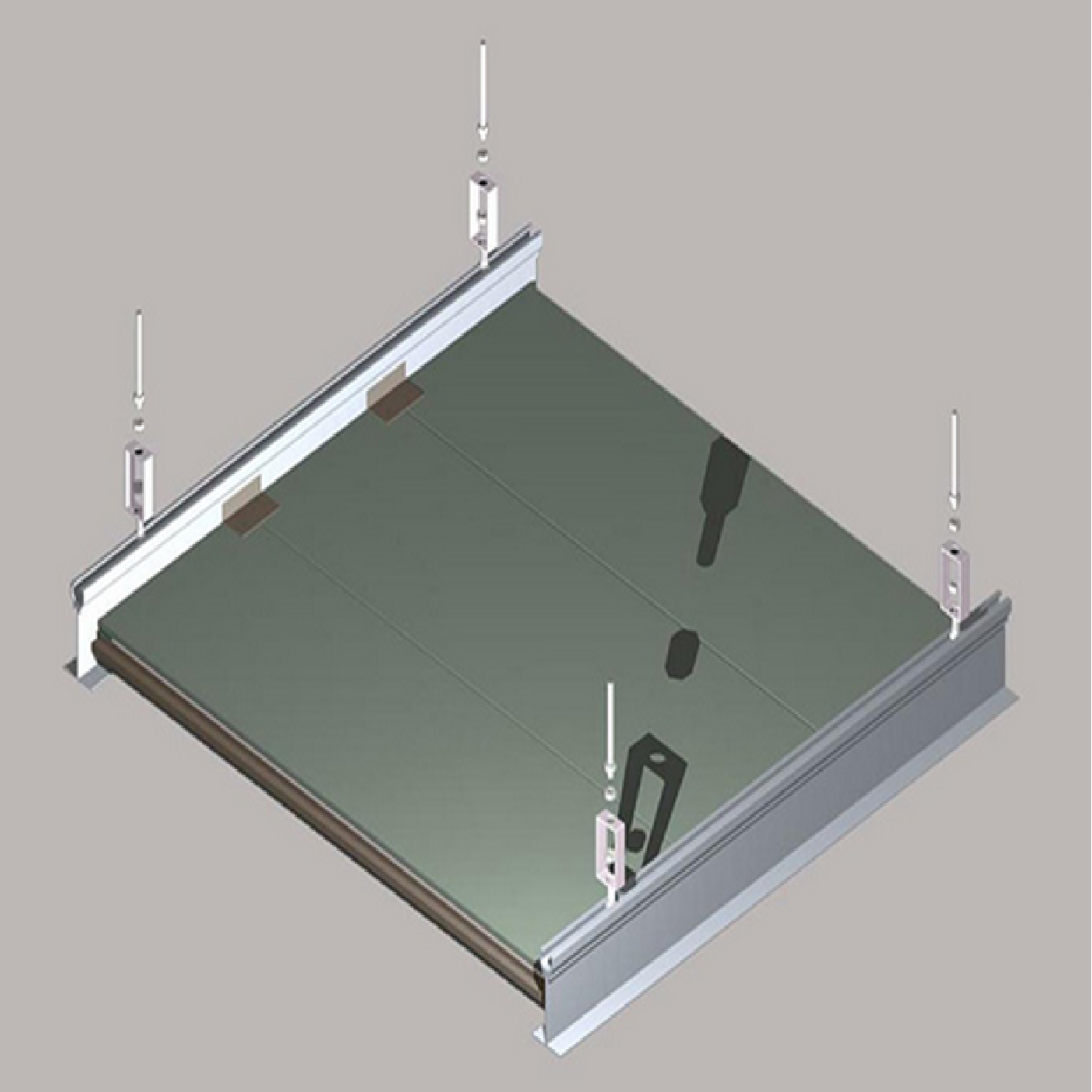

T-grid Ceiling System
- Fire Rating: >1 hour
- Thermal Conductivity: <0.044 W/mk
- Resists Temperatures: >1000oC
- Water Absorption: Moderate
- Compression Resistance: >40Kpa
- Noise Absorbing, at 125Hz: 0.07
- Density: 100 kg/m3
- Compressive Strength: 150 kPa
- Flammable Gas Toxicity: Less
- Core Intenerate Temperature: >850 oC
| CEILING TEE | T-Grid Ceiling Tee |
| DIMENSION | Height: 105mm, Width: 51mm |
| MATERIAL | AL Alloy (6065-T5) |
| PANEL TYPE | 50 mm (t) rock wool panel
Panel edge sealed by 0.8mm GI sheet made framework |
| PANEL DIMENSION: | Thickness – 50 mm
Width and Length – 1187*2400 mm. |
| APPLICATIONS | Cleanroom non-demountable caulking wall system |
| FACINGS | 0.5 mm PE Roll Coated
Static Dissipative Surface Treatment Conductivity: R= 106Ω－109Ω or non-conductivity surface The surface is covered with a plastic foil (0.05mm) for the prevention of transportation or installation damages. Color: grey white |
| CORE | Rock wool, Density 100 kg/m3 |
| ADHESIVE | Rebon YB2002 (resin) mixed with YB8001 (Hardener) Epoxy Past Adhesive
Mixing Ratio, YB2002:YB8001=4:1 |
